Buttweld Pipe Fittings

• Application
• other, Oil & Gas, Petrochemical, Water Treatment, Power Plants

• Bend Radius
• Short Radius (SR) / Long Radius (LR)

• Coating Type
• Rust Preventive / Customized

• Color
• Silver / Grey / Black

• Connection
• Other, Welded

• Connection Type
• Buttweld

• Diameter
• Range 15mm - 1200mm

• Flexibility
• Rigid

• Length
• Custom / as per specification

• Material
• Other , Stainless Steel / Carbon Steel / Alloy Steel

• Material Grade
• 304 / 304L / 316 / 316L / A234 WPB

• Outer Diameter
• 1/2 (21.3mm) to 48 (1219mm)

• Product Type
• Other, Buttweld Fitting Elbow

• Rated Pressure
• Sch10 to Sch160 / STD / XS / XXS

• Sealing Type
• Metal-to-Metal

• Section Shape
• Round

• Shape
• Other, Elbow (Curved)

• Standard
• Other, ASTM A403 / ASME B16.9 / EN 10253

• Surface Treatment
• Other, Pickling / Polished / Sand Blasted

• Temperature Range
• -20C to 800C

• Tensile Strength
• 515 MPa (min) - Depends on Material Grade

• Thickness
• 2mm - 30mm (as required)

• Tolerance
• 0.5mm

• Usage
• Pipe connection, change flow direction

• Yield Strength
• 205 MPa (min) - Depends on Material Grade

• Application
• other, Industrial Piping, Plumbing, Pressure Vessels

• Bend Radius
• As per standard (typically center to end height = 1.5 x nominal diameter)

• Coating Type
• Varnished, Epoxy, Hot-dip Galvanized (on request)

• Color
• Black, Silver, Grey

• Connection
• Other, Welded

• Connection Type
• Buttweld

• Diameter
• 1/2 to 24 (DN15 to DN600)

• Flexibility
• Rigid

• Length
• Custom as per standard or request

• Material
• Other , Carbon Steel / Stainless Steel / Alloy Steel (customizable)

• Material Grade
• A234 WPB, A420 WPL6, A403 WP304/316, etc.

• Outer Diameter
• 21.3 mm to 610 mm

• Product Type
• Other, Buttweld Fitting Tee

• Rated Pressure
• Up to 80 bar (depends on wall thickness and material)

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Tee

• Standard
• Other, ASME B16.9 / ASTM A234 / DIN / JIS / EN

• Surface Treatment
• Other, Pickling / Sand Blasting / Black Painted / Anti-rust Oil

• Temperature Range
• -40C to +600C

• Tensile Strength
• 415 MPa (for carbon steel)

• Thickness
• Sch 10, Sch 20, Sch 40, Sch 80, Sch 160, Sch XXS (customizable)

• Tolerance
• 0.5 mm

• Usage
• Pipeline, Gas, Oil, Construction, Water Supply

• Yield Strength
• 240 MPa (for carbon steel)

• Application
• other, Oil & Gas, Petrochemical, Power Plant, Water Treatment

• Coating Type
• Uncoated

• Color
• Metallic Silver

• Connection
• Other, Buttweld

• Connection Type
• Welded

• Diameter
• Up to 24 inches

• Flexibility
• Rigid

• Length
• Custom as per requirement

• Material
• Stainless Steel

• Material Grade
• 304 / 304L / 316 / 316L

• Outer Diameter
• 1/2 to 24 (12.7 mm to 610 mm)

• Product Type

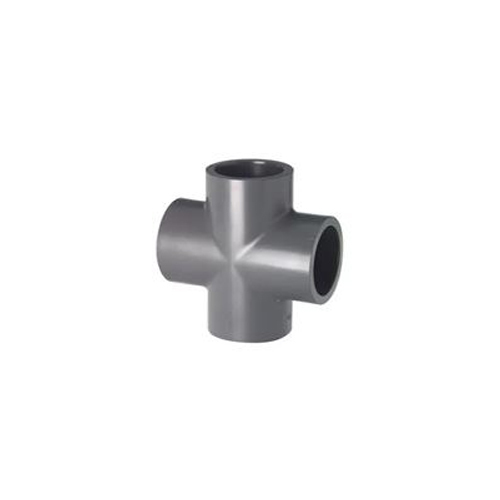

• Other, Buttweld Fitting Cross

• Rated Pressure
• Class 150 to 600

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Cross

• Standard
• Other, ASME B16.9 / ASTM A403

• Surface Treatment
• Other, Pickled or Polished

• Temperature Range
• -20C to 450C

• Tensile Strength
• >485 MPa

• Thickness
• Schedule 10S to Schedule 40S

• Tolerance
• 0.5 mm

• Usage
• Pipeline systems, Fluid distribution, Chemical plants

• Yield Strength
• >170 MPa

• Application
• other, Oil & Gas, Power, Petrochemical, Chemical, Water Supply

• Bend Radius
• 1D, 1.5D, 3D, 5D, Custom as required

• Coating Type
• Black Painted / Anti-rust Oil / Pickled

• Color
• Metallic Silver / Black

• Connection
• Other, Buttweld

• Connection Type
• Welded

• Diameter
• Nominal Pipe Size (NPS) 1/2 to 48

• Flexibility
• Rigid

• Length
• Up to 6000 mm (customizable)

• Material
• Other , Stainless Steel / Carbon Steel / Alloy Steel

• Material Grade
• SS304 / SS316 / A234 WPB / A420 WPL6 / A860 WPHY 42-70

• Outer Diameter
• 1/2 inch to 48 inch (21.3 mm to 1219 mm)

• Product Type
• Other, Buttweld Fitting Bends

• Rated Pressure
• Class 150 to 2500, SCH10 to XXS

• Sealing Type
• Welded Joint

• Section Shape
• Round

• Shape
• Other, Bend (Elbow-shaped)

• Standard
• Other, ASTM A403 / ASME B16.9 / DIN 2605 / EN 10253

• Surface Treatment
• Other, Shot Blasted / Pickled / Polished / Black Painted

• Temperature Range
• -46C to 600C (Depending on Material)

• Tensile Strength
• 415 MPa (Minimum for Carbon Steel)

• Thickness
• SCH10 to SCH160 / STD / XS / XXS

• Tolerance
• 1% or as per ANSI B16.9

• Usage
• Pipeline Bending, Direction Change in Piping Systems

• Yield Strength
• 240 MPa (Minimum for Carbon Steel)

• Application
• other, Oil & Gas, Chemical, Power Plant, Petrochemical, Water Treatment

• Bend Radius
• Standard to ASME B16.9

• Coating Type
• Anti-rust Oil / Painted / Customized

• Color
• Metallic Silver / Black

• Connection
• Other, Welded

• Connection Type
• Butt Weld

• Diameter
• Customized

• Flexibility
• Rigid

• Length
• Customized / as per standard

• Material
• Other , Stainless Steel / Carbon Steel / Alloy Steel

• Material Grade
• ASTM A234 WPB, ASTM A403 WP304/316, etc.

• Outer Diameter
• 1/2 inch up to 48 inch (12 mm to 1220 mm)

• Product Type
• Other, Buttweld Fitting Reducer

• Rated Pressure
• Up to 6000 psi

• Sealing Type
• Metal to Metal

• Section Shape
• Round

• Shape
• Other, Concentric / Eccentric

• Standard
• Other, ASME B16.9 / DIN / JIS / EN

• Surface Treatment
• Other, Polished / Sand Blasted / Pickled

• Temperature Range
• -20C to 425C

• Tensile Strength
• 415 MPa min (for carbon steel grade)

• Thickness
• Sch 10 / Sch 40 / Sch 80 / Customized

• Tolerance
• 0.5 mm

• Usage
• Pipe fitting / Flow reduction

• Yield Strength
• 240 MPa min (for carbon steel grade)

• Application
• other, Chemical, Oil & Gas, Petrochemical, Water Treatment, Power Plants

• Coating Type
• Optional (Epoxy, Galvanized)

• Color
• Metallic Silver / Black

• Connection
• Other, Buttweld/B welded

• Connection Type
• Welded

• Diameter
• 1/2 upto 48

• Flexibility
• Rigid

• Length
• Specified as per customer requirement

• Material
• Other , Stainless Steel, Carbon Steel, Alloy Steel

• Material Grade
• 304/304L/316/316L/321/310, ASTM A234 WPB, WP11, WP22

• Outer Diameter
• 15 mm to 1200 mm

• Product Type
• Other, Buttweld Fitting End Caps

• Rated Pressure
• PN6 to PN64 / Sch10 to Sch160

• Sealing Type
• Permanent welded seal

• Section Shape
• Other, Circular

• Shape
• Other, Round/Dome

• Standard
• Other, ASME B16.9, ANSI B16.9, DIN 2617, EN 10253, JIS B2312

• Surface Treatment
• Other, Pickled, Passivated, Polished, Sand Blasted, Black Painted

• Temperature Range
• -20C to +600C

• Tensile Strength
• Up to 580 MPa (for SS 304)

• Thickness
• 1.5 mm to 50 mm

• Tolerance
• 0.5 mm

• Usage
• Pipe End Sealing, Pressure Vessel Ends

• Yield Strength
• Up to 290 MPa (for SS 304)
